Description

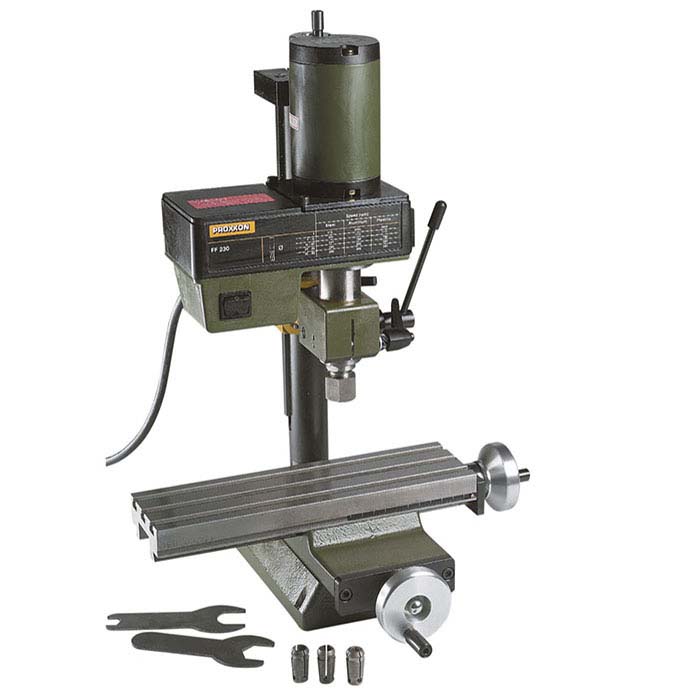

Create detailed master models in wax and model board, pre-drill perfect pavé settings, work out precise channel cuts in rings and much more with this highly accurate, multi-purpose milling machine. Designed for a wide variety of media, it is effective on wax, plastic, wood and metals. A permanent-magnet motor and V-belt drive provide high torque even at lower speeds—especially important when working with wax models or when creating precise holes and channels in metals.
• Six step speeds are locked in so you’re assured of accurate, consistent and repeatable results—set the mill at 280, 550, 870, 1,250, 1,700 or 2,500rpm and get the same, precise speed every time.
• Hand-wheel with adjustable scale offers highly accurate settings with one revolution equalling .04" (1mm); divided into .002" (.05mm) increments.
• Top hand-wheel adjusts height and serves as a fine feed when milling.
• Excellent for building tools and carbon board fixtures for soldering.
• The 10-5/8" x 3-5/32" table is T-slotted to 1/2" x 1/4" x 1/4".
• Three collets: .24", .31", .40" (6, 8, 10mm)
• Column size: 1-3/8" dia. x 15-3/4"H
• Machine weight: 41 lbs.

---

Specifications:

• Brand : Proxxon
• Model or style no. : Medium-duty
• Dimensions : 7-1/8"W x 5-1/8"D x 20"H
• Frequency : 60Hz
• Voltage : 110 volts
• Country of origin : Austria

---

Catalog page: 2011 Tools and Equipment Catalog p. 509

---
