Third Hand Attachment for GRS® BenchMate Soldering Station

New

Web Only

Item #: 113163

Country of origin: United States
Shipping weight: 10.216 ounces (289.618g)

Description
More Info
Reviews

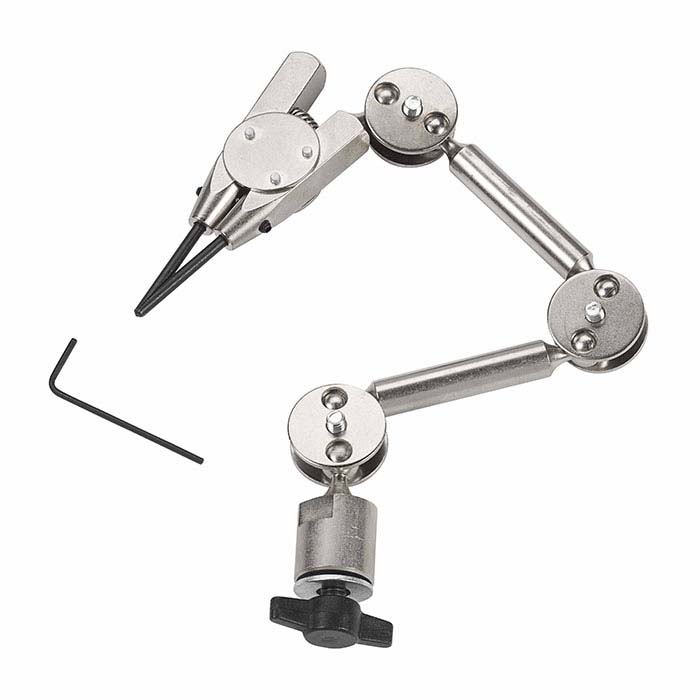

This steel, three-jointed arm and spring-loaded third hand clamp with steel jaws is designed to fit into the GRS® double third-hand station.
• Three-joint arms hold work securely up to 14" above the work surface.
• Steel jaws are included; tips are rounded and their gripping surfaces are angled to meet flush with one another.
• Tungsten jaws are available (502-021) for platinum soldering to prevent contamination of your metal.

Catalog page:

2016-2017 Tools and Equipment Catalog p.264

How To

The Basics On How To Solder Effectively

Here's how to solder effectively using the basic skills for soldering. Follow these steps to ensure strong, long-lasting joint.

Clean
Solder won’t flow on a dirty or greasy surface. Use a de-greasing detergent cleaner and an abrasive pad, or an abrasive such as pumice powder to remove dirt or grease from the metal being soldered. Rinse thoroughly after cleaning. You can also steam-clean the workpieces.

Fit
Components, findings and joints must fit tightly together. Gaps in joints and poorly matched junctures between parts create a poor solder joint, which could result in pitting of the solder or in a weak joint that could break. Occasionally, solder simply will not fill a poor-fitting area.

Flux
Flux prepares the metal surface to receive the fluid solder. When applying flux, make sure it is in contact with the solder at all times and that it touches both metal parts being joined. Some self-pickling fluxes also help dissolve oxides. Keeping the joint oxide-free is important for creating the ideal soldering surface.

Flame
Use either a neutral flame (equal parts oxygen and gas) or a reducing flame (more gas than oxygen). The metal adjacent to the joint must reach the necessary temperature before solder will flow. First concentrate the heat on the surrounding surface, then on the joint to be soldered. Remember, solder flows to the hottest part of the surface and toward the flame.

Follow-Up
After soldering, use a mild acid pickle to clean nonferrous metals. This removes oxides and other soldering residues prior to finishing. When storing solders, keep them free from dirt and grease. Sheet solders may be cleaned to remove dirt or residue.
