Description

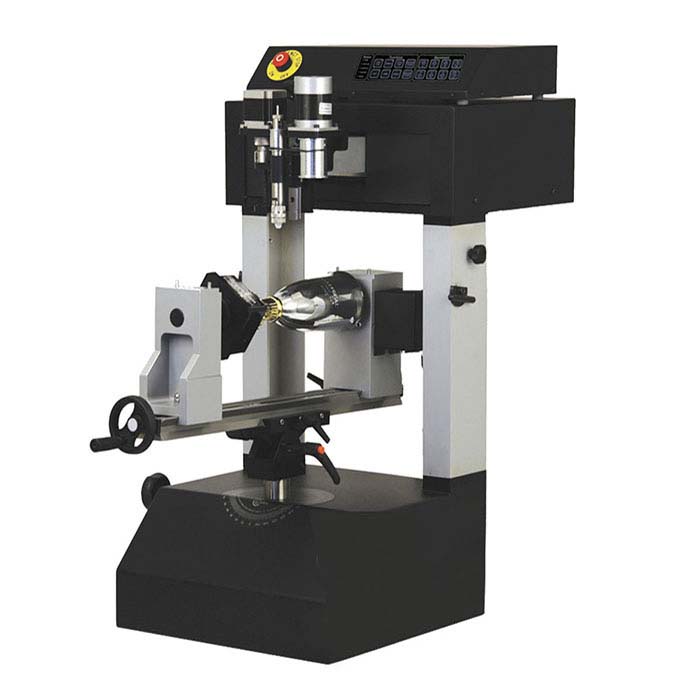

From flat to curved surfaces, the U-MARQ® Universal-350 engraves lettering just a fraction of a millimeter high on delicate jewelry as well as a wide variety of other materials. Link it to your personal computer or laptop, then set it up in any workshop or retail environment—you’ll be engraving (and increasing your profits) in no time!
The computerized engraver system combines mechanical stability with innovative design, delivering the ultimate engraving machine for silver, gold, copper, plastic, glass and beyond. This four-axis machine allows you exceptional control over the cylindrical axis, which can be angled to cope with conical shapes or regular cylinders. Easily raise or lower the machine's vise for objects with unusual shapes and sizes.
Engrave 360° for circular shapes, and engrave on flat surfaces of up to 9-3/8"" x 5-3/16". The tiltable work holding vise adjusts to bring angled surfaces into position for engraving. The high speed spindle is virtually noiseless and the machine is equipped with a carbide cutter and knob, making it easy to cut out a variety of shapes. Plus, achieve incredible ring engraving results up to 28mm in diameter on the inside and the outside by fitting a simple attachment. Add the bangle attachment and increase the engraving size to 75mm in diameter inside and outside.


Specifications:
  • Brand : U-MARQ
  • Model or style no. : Universal-350
  • Power : 110/220 volts (dual)
  • Dimensions : 24"W x 16-1/2"D x 33"H
  • Country of origin : United Kingdom
Additional Specifications:
  • • Interface to PC/laptop: serial and USB (with adapter).
    • Mechanics: Stainless steel spindles and lead screws, steel chassis
    • Engravable materials: Wood, plaster, plastics, resins, silver, gold, brass, aluminum, stainless steel, etc.
    • Flat work size: 9-1/2" x 5" (240mm x 132mm)
    • Cylindrical work size: 10-1/2" dia. (265mm)
    • Z-axis travel: 2" (50mm)
    • Z-axis clearance: 4-5/16" (110mm) top of jaws, 11" (280mm) top of beam
    • Maximum vice opening: 16-1/2" (420mm)
    • Spindle motor speed: 18,000rpm
    • Power of spindle motor: 100 watts; brushless hall-effect DC motor
    • Feed rates: Variable, electronically controlled micro-stepping, up to 4-1/2" per second (116mm).


Please Note:

• This machine must be used in conjunction with your computer. Minimum PC/Laptop requirements: 2.4 GHz, Pentium 4, PC running Windows 2000 or XP, 256 MB RAM, 100 MB free hard disk space, 2 free USB ports, 256 color SVGA display, CD-ROM drive and mouse. This machine is compatible ONLY with PC (not Mac) computers.
IMPORTANT: This item is wired for dual 110- and 220-volt capability and is sold with a U.S. plug. Because amperage, outlets and plugs vary widely by location, you may need a different plug. If so, you are responsible for having the appropriate plug or adapter installed by a qualified professional. Rio Grande assumes no liability for improper or inadequate re-wiring or adapters procured by customer.
• As the owner of a U-MARQ® engraving machine, you can register at www.u-marq.com and download free tutorial videos on your machine. Simply click on the 'Forums' tab at the top of the U-MARQ home page and register to begin. Or, copy and paste this link directly into your browser's address bar: "http://tinyrio.com/umarq"; then register to begin.


Catalog page: 2016-2017 Tools and Equipment Catalog p.285
Kit set includes:
  • • U-MARQ Universal-350 engraving machine.
    • Quick start guide.
    • U-MARQ Universal-350 engraving software package.
    • Photo engraving software.
    • 120° diamond cutter.
    • 0.3mm carbide cutter.
    • Three Universal-350 ring attachments including 120° inside diamond drag, inside ring engraving holding pins, and outside ring engraving holding pins.
    • Gold cutting kit including one precious metal cutter, 25mm x 5M engravers double sided holding tape, 13mm x 5M engravers double sided holding tape, engraving lubricant, and sacrifice material.
    • Glass engraving kit including one special rotating glass engraving diamond cutter, and engraving lubricant.
    • Standard jigs.
    • Set of three jigs including watch & medal, ring & pen and jewelry.
    • Plastic-coated jig pin set, 13mm.
    • Bangle attachment including 120° inside bangle diamond and bangle holding bobbins.
    • Cutter knob.
    • Light touch knob.
    • Metal nose cone.
    • Acetyl nose cones, medium.
    • 50–85mm cone.
    • Cup cone 15–70mm.
    • Cup cone 85–120mm.
    • Cup cone 120–160mm.
    • 50mm face plate and rubber.
    • 100mm face plate.
    • Power box and cable.
    • USB cable.
