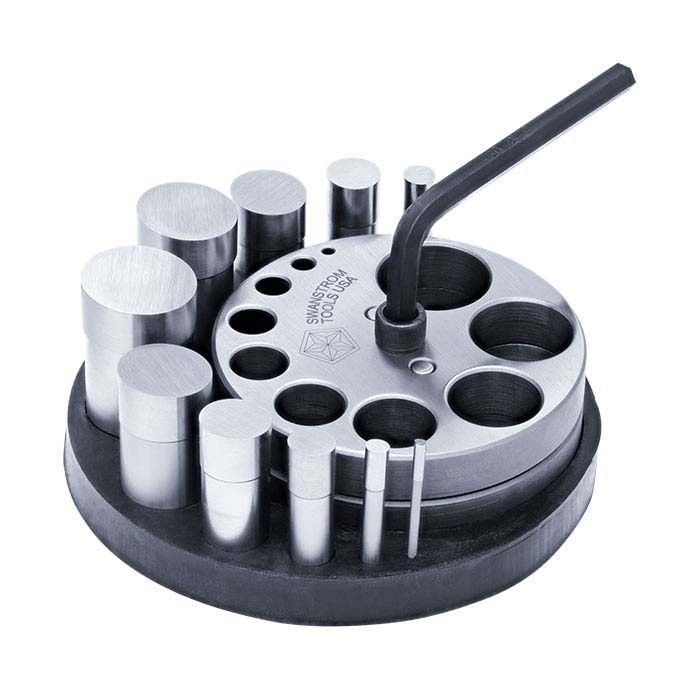

Swanstrom Metric Disc Cutter Set
Swanstrom Metric Disc Cutter Set Alternate Text

Quantity (EA) Price
1 - 2 $311.85
3 - 5 $302.40
6 and above $292.95

The price for higher quantity price breaks will appear in your shopping cart.

Save More!

Order Summary
Quantity (Each) 0.00
Total Price $0.00
Add to List

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer (www.P65warnings.ca.gov).

Description

Cut clean, consistent shapes that release quickly and easily with the disc cutter that outperforms them all. The Swanstrom disc cutter is manufactured in the USA and provides decades of consistent service.
• Punches smaller than 25mm are made of 4140 tool steel, case-hardened to 57 HRC.
• The top and bottom plates, and 25mm and larger punches are made of S7 durable shock-resistant tool steel through hardened to 55 HRC for long-wear.

The Swanstrom disc cutter offers punches with precision-ground surfaces, to deliver smooth edges requiring minimal clean up. The tight tolerances between the punches and the spring-loaded die plate ensure clean cuts while prolonging the service life of the disc cutter.

The die plate clamps your metal to prevent distortion and keeps your fingers out of the way. It’s easy to open and close, so that you can adjust the cutter for your material. Place a shim of the same thickness as the material being cut on the opposite side of the disc cutter to keep the plates balanced.

Great for soft materials up to 16 gauge (1.29mm) when using a mallet and up to 10 gauge (2.59mm) when using a Bonny Doon hydraulic press. Use a urethane pad (1/16" thick, 95 durometer; not included) under the cutters to reduce noise, support your cutters, protect your work surface, and ensure a crisp cut.

Manufactured exclusively for Rio Grande.

This item is available in kit/set: Swanstrom Round Metric Disc Cutter Kit
Specifications:
  • Brand : Swanstrom
  • Country of origin : United States
Please Note:

• IMPORTANT: Always position a shim of the same thickness of the material being cut directly across from that material to keep the plates balanced and ensure a perfectly perpendicular cut.
• Protect the surfaces of your punches by using only brass-head mallets to strike them when cutting.
• Always use BurLife® on the cutting edges of your punches to keep them cutting cleanly and efficiently for years to come.

Catalog page: 2020-2021 Tools and Equipment Catalog p. 159
Kit set includes:

  • two-die plates, 4-1/2" dia. x 1-3/4"H (107.9 x 44.5mm).

  • 10 punches, each is 2" (50.8mm) tall:
  • —3mm (.118") dia. (11259403)
  • —6mm (.236") dia. (11259406)
  • —10mm (.394") dia. (11259410)
  • —13mm (.512") dia. (11259413)
  • —16mm (.630") dia. (11259416)
  • —20mm (.787") dia. (11259420)
  • —22mm (.866") dia. (11259422)
  • —25mm (.984") dia. (11259425)
  • —28mm (1.10") dia. (11259428)
  • —32mm (1.26") dia. (11259432)
  • One strong rubber base, 5-7/8"-dia. (149.2mm) that conveniently holds the cutter and dies. (1125091)
