Friedrich Dick Crossing Escapement File, #8

Quantity (EA) Price
1 - 2 $20.15
3 - 5 $19.10
6 - 11 $18.15
12 and above $17.25

The price for higher quantity price breaks will appear in your shopping cart.

Save More!

Order Summary
Quantity (Each) 0.00
Total Price $0.00

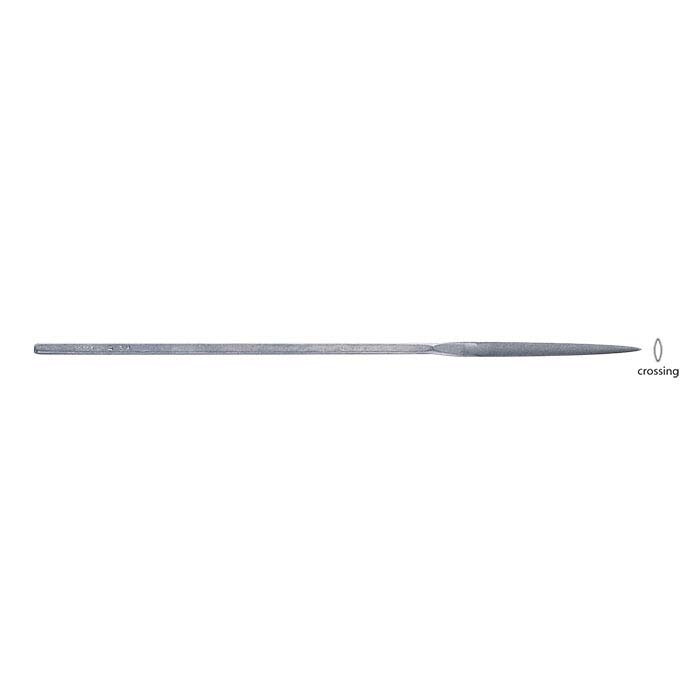

This Friedrich Dick crossing escapement file is ideal for your most delicate filing and shaping tasks, for smoothing tiny details, and for creating inside cuts. It features a double half-round shape—each with a different radius—and is an ideal choice for filling inside ring shanks and other curved interior surfaces. The double-cut file tapers to a point in width and thickness along its length. Along the edges, the curved sides meet at a sharp angle.

This file has a German cut #8; German-cut files are graded by the number of teeth, counting teeth parallel to the long axis of the file. German cuts start coarser than Swiss and go finer, offering more increments for more precise cutting. In all cut styles, the higher the number, the finer its cut.

A double-cut file features two sets of evenly spaced teeth set in two directions, one at a slightly different angle than the other. Double-cut files are designed to cut more aggressively, maximizing the work of each stroke to remove more metal with fewer strokes. At the end of the stroke, the file should be lifted from the workpiece and repositioned for the next stroke; dragging the file backward against the metal can mar the metal and damage the teeth.

Escapement files are narrower and thinner than standard needle files with shorter cutting surfaces and longer, square handles. Effective on gold, silver, platinum, titanium, steel and other metals, escapement files are best suited for work that requires little metal removal.

Among the finest jewelers' files in the world, Friedrich Dick files are made of tough chrome/tool steel alloy and precisely machined to yield sharp corners and fine points. These files have deep-cut teeth that provide efficient, uniform stock removal and are 66–67 HRC hardness for exceptional service with minimal care.

  • Shape : Crossing
  • Type : Escapement
  • Dimensions : 5-1/2" (140mm)
  • Cutting surface length : 1-5/8"L x 3/16"W (40 x 4.7mm)
  • Brand : Friedrich Dick
  • German cut no. : #8
  • Swiss cut no. : #8
  • Country of origin : Switzerland

Catalog page: 2018-2019 Tools and Equipment Catalog p.84
