Description

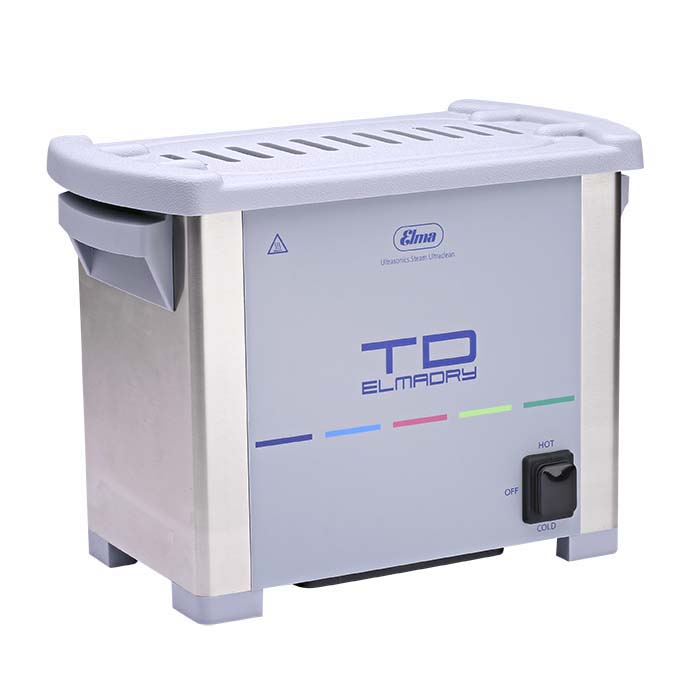

Dry jewelry components quickly to avoid water-spotting that can mar their appearance with this Elmadry TD30 air dryer. The TD30 offers a nine-liter capacity and is capable of operating on two drying modes: hot mode, with a maximum temperature of 158° (70°C), and cold mode, allowing delicate, heat-sensitive pieces to be dried without risk of heat damage. The cool setting also allows pieces to be cooled down quickly after heat-drying so that they can be handled immediately after the drying cycle.

The unit is easy to use, ideal for both retail and production work. Ventilation slots in the lid ensure moist air is removed from the dryer, reducing drying time and energy consumption; a dust filter on the bottom of the unit prevents dust and debris from entering the dryer. An automatic safety shutdown feature prevents the dryer from overheating, allowing protection of both the operator and the equipment. Includes a parts basket.

---

Specifications:

• Brand : Elma
• Model or style no. : TD 30
• Dimensions : 10-1/4"W x 6-7/8"D x 8-1/2"H (260 x 175 x 215mm)
• Capacity : 1kg (1,000g)
• Voltage : 110 volts
• Wattage : 460 watts
• Country of origin : Germany

Additional Specifications:

• Basket internal dimensions: 8-1/2"W x 4-3/16"D x 1-7/8"H (216 x 106 x 48mm)
  Air capacity: 3.2 liters/minute (lpm)

---

Catalog page: 2018-2019 Tools and Equipment Catalog p.511

---
