Bonny Doon 20-Ton Mark III Manual Hydraulic Press & Ram Starter Kit
Bonny Doon 20-Ton Mark III Manual Hydraulic Press & Ram Starter Kit Alternate Text

Quantity (EA) Price
1 and above $4,696.25

The price for higher quantity price breaks will appear in your shopping cart.

Save More!

Order Summary
Quantity (Each) 0.00
Total Price $0.00
Add to List

Out of Stock


Description

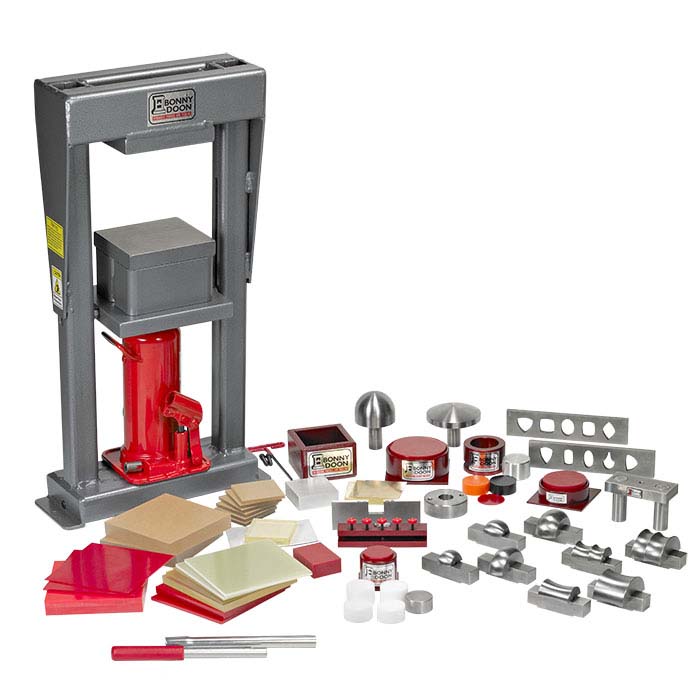

This starter kit comes with the Bonny Doon 20-ton Mark III manual hydraulic press and a ram as well as an exciting selection of tooling that will give your metal forming capabilities incredible range—right from the start.

The Bonny Doon deep-draw hydraulic press features heavy-gauge steel crossbeams and corner reinforcing to help you produce more consistent metal forms. Steel platens are hard and smooth, and the frame is powder-coated for a long-lasting finish. Perform deep-draw techniques quickly and easily with this press! Simply lift off the riser block for an additional 4" of vertical clearance and a total of 10" of working space. Accommodates both the 3" and 6" deep-draw kits (available separately).

This press includes a superior-quality hydraulic ram with:
• Integrated triple seals for smooth operation.
• An oil bypass system protects internal parts by preventing overextension of the ram.

In addition, the press features:
• Press frame (17"W x 8"D x 27"H) is welded heavy-gauge, 2"-square steel tubing.
• A rust-protected baked enamel finish.
• Hot-forged steel base for greater strength.
• One-piece welded construction.
• Steel platens (1"-thick)—the 6" upper platen is welded to the frame, the 8" lower platen is self-leveling for consistently even pressure.
• Pre-drilled feet allow you to bolt it directly to a workstation.
• 10,000psi pressure gauge to provide a visual indication of the pressure being generated, allowing for accurate repeat cycles.

Specifications:
  • Brand : Bonny Doon
  • Dimensions : 17"W x 8"D x 27"H
  • Model or style no. : Mark III
  • Country of origin : United States
Catalog page: 2020-2021 Tools and Equipment Catalog p. 205
Kit set includes:
  • Master tool holder (110271)
  • Contained urethane kit, 2" (110471)
  • Round urethane container, 4" (110541)
  • Round urethane insert, 4" (110542)
  • Square form box kit, 3" (1104711)
  • Two mushroom formers:
  • —3" (110278)
  • —4" (110589)
  • Ring-forming blade (110608)
  • Studio bracelet-forming set (110920)
  • Silhouette die kit (110486)
  • Brake back bar (110567)
  • Bonny Doon consumable kit (110469)
