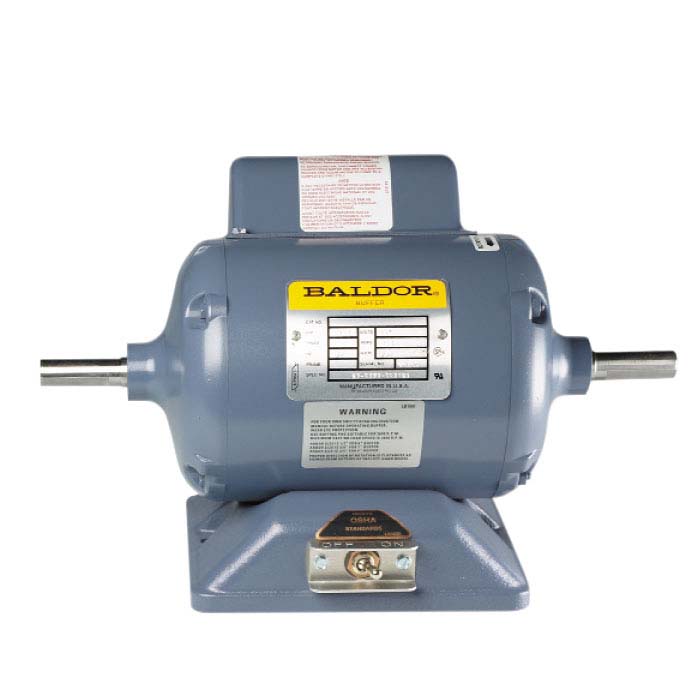

Baldor Continuous-Duty 5/8" Straight-Shaft Polishing Motor, 1/2hp

Quantity (EA) Price
1 and above $425.00

The price for higher quantity price breaks will appear in your shopping cart.

Save More!

Order Summary
Quantity (Each) 0.00
Total Price $0.00


Description

Polishing motors make quick work of grinding, shaping and polishing tasks, and they accommodate a wide range of accessories that make these tasks easier. The unique, slightly tapered shafts on this Baldor dual tapered-shaft motor run true, eliminating the annoying buff wobble sometimes experienced with conventional shafts. Tapered-shaft Baldor motors are unique; the slight taper on the shaft holds true, eliminating the wobble that can occur with conventional shafts. The taper serves to accommodate the slight hole size variations common to hubs, buffs, wheels and spindles. Specially designed Baldor 5/8" tapered spindles with tapered interior machining (available separately) are made to fit onto the tapered shafts of this motor, further ensuring that accessories run with little to no wobble or vibration. Because the shaft on this motor features threading at its base, it will also accept straight-shaft spindles, provided their interiors are threaded.

The base of this motor offers positioning holes that allow you to permanently fix the motor to your work surface. To help collect and recycle precious-metal debris generated by your work processes, we recommend using a hood and dust collection system with this (or any) polishing motor.


Specifications:
  • Brand : Baldor
  • Power : 110 volts; 3.4 amps
  • Country of origin : United States
Additional Specifications:
  • • Motor: 1/2hp
    • Spindles: dual
    • Speed: 3,600rpm
    • Shaft size: 5/8" straight
    • Motor weight: 31 lbs.
    • Motor height: 8-3/4"
    • Overall length (shaft tip to shaft tip): 13-13/16"
    • Shaft height: 4-5/8"
    • Maximum wheel size: 6"


Catalog page: 2018-2019 Tools and Equipment Catalog p.453
